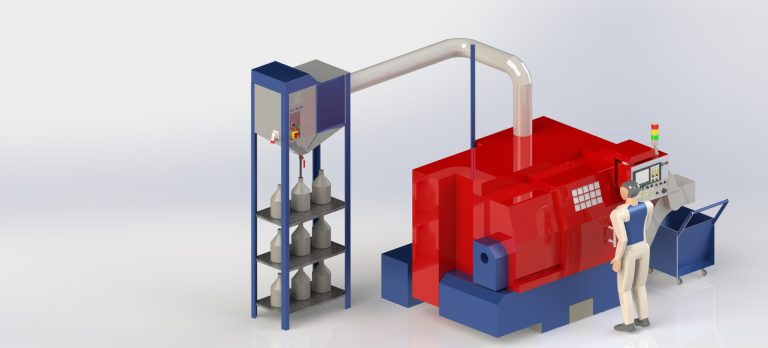

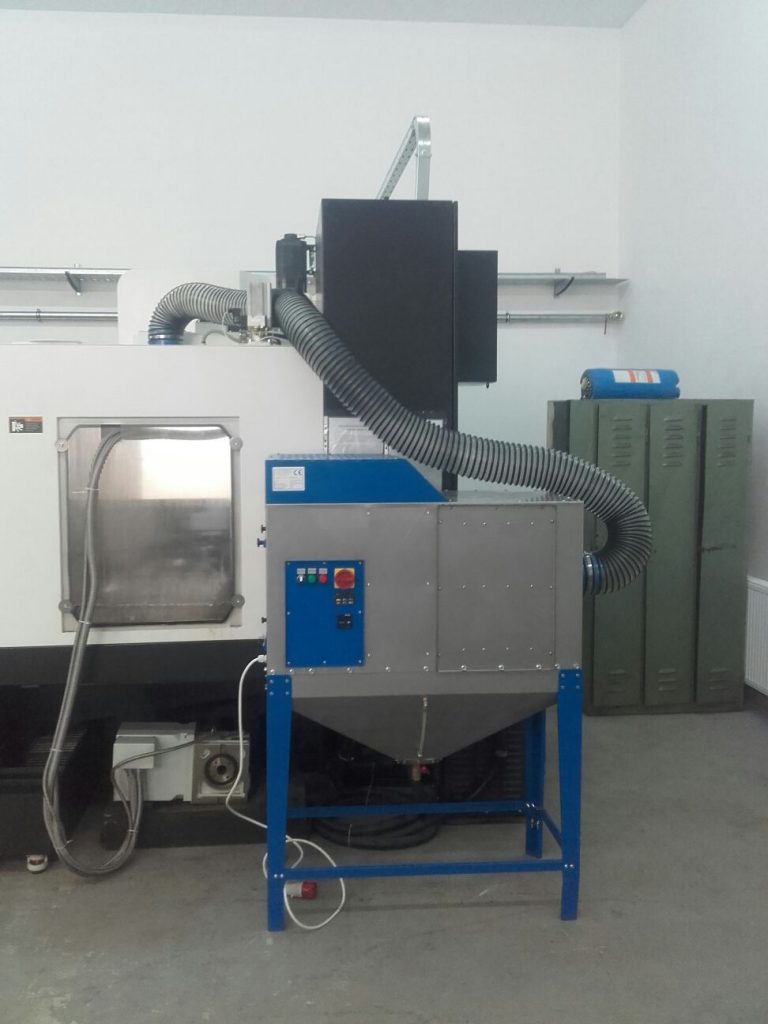

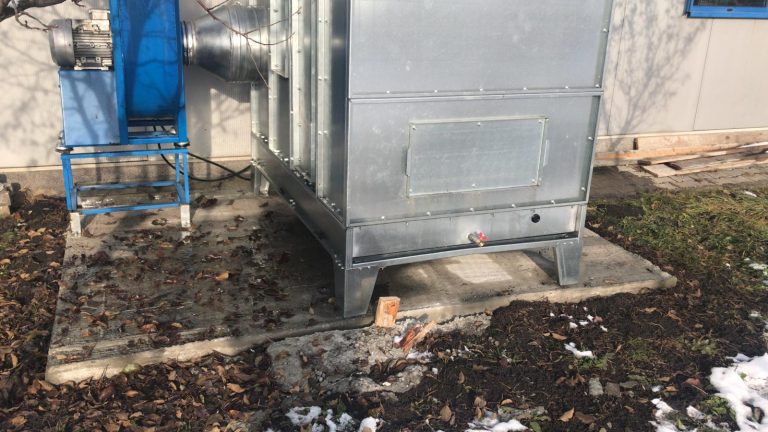

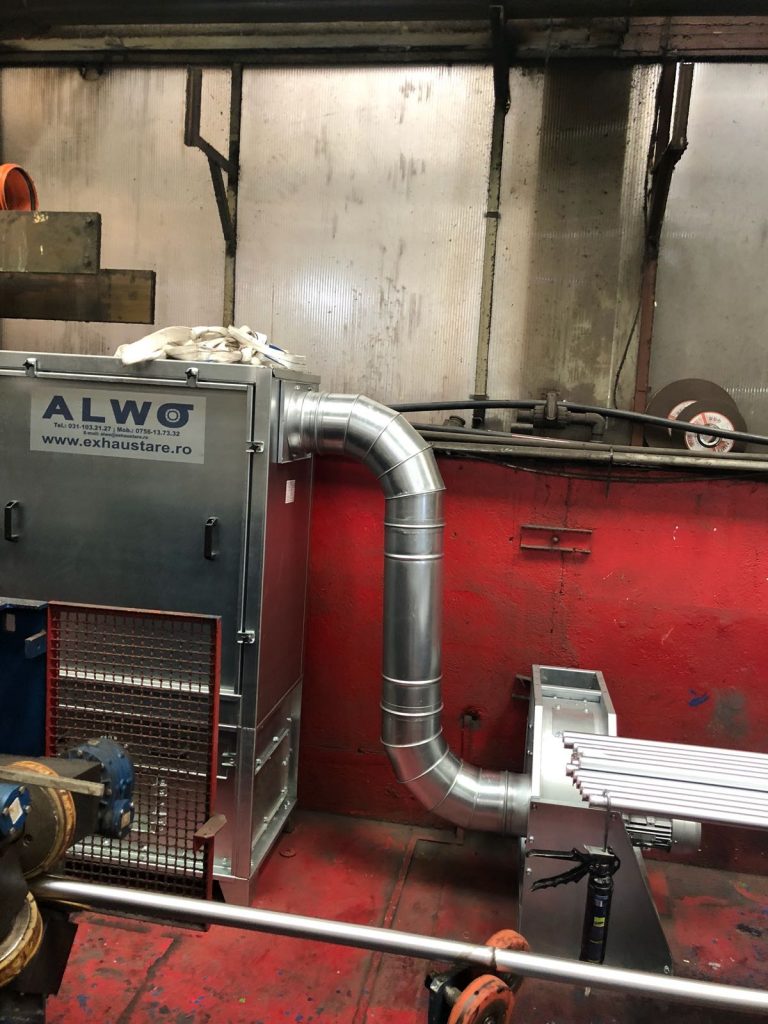

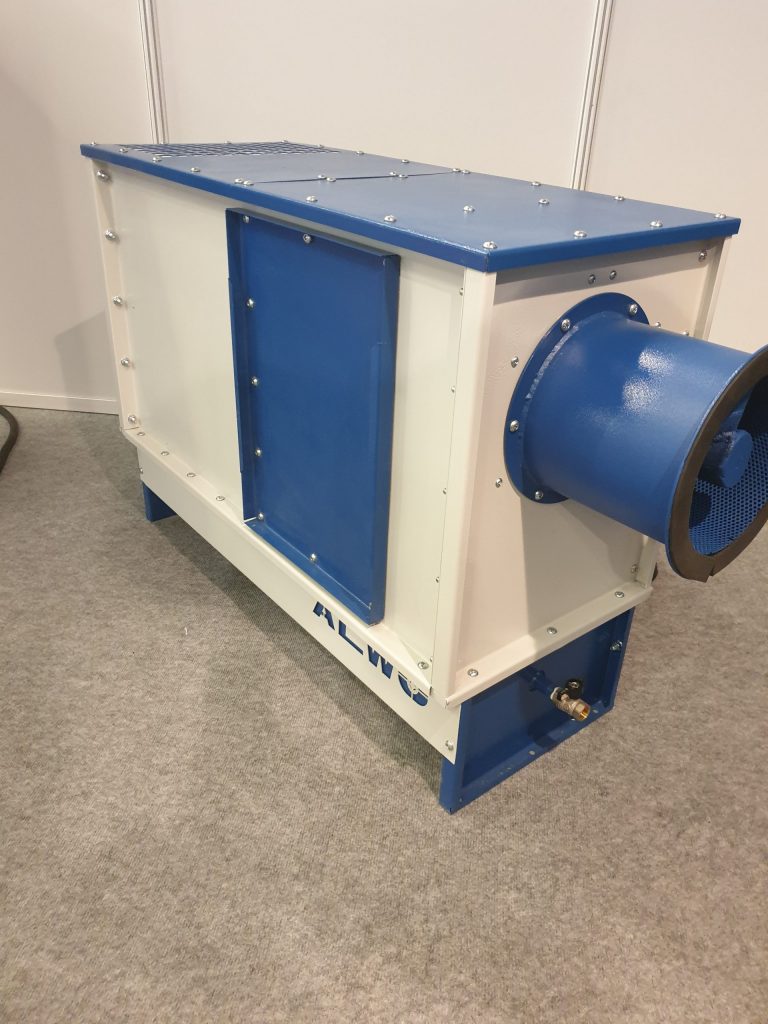

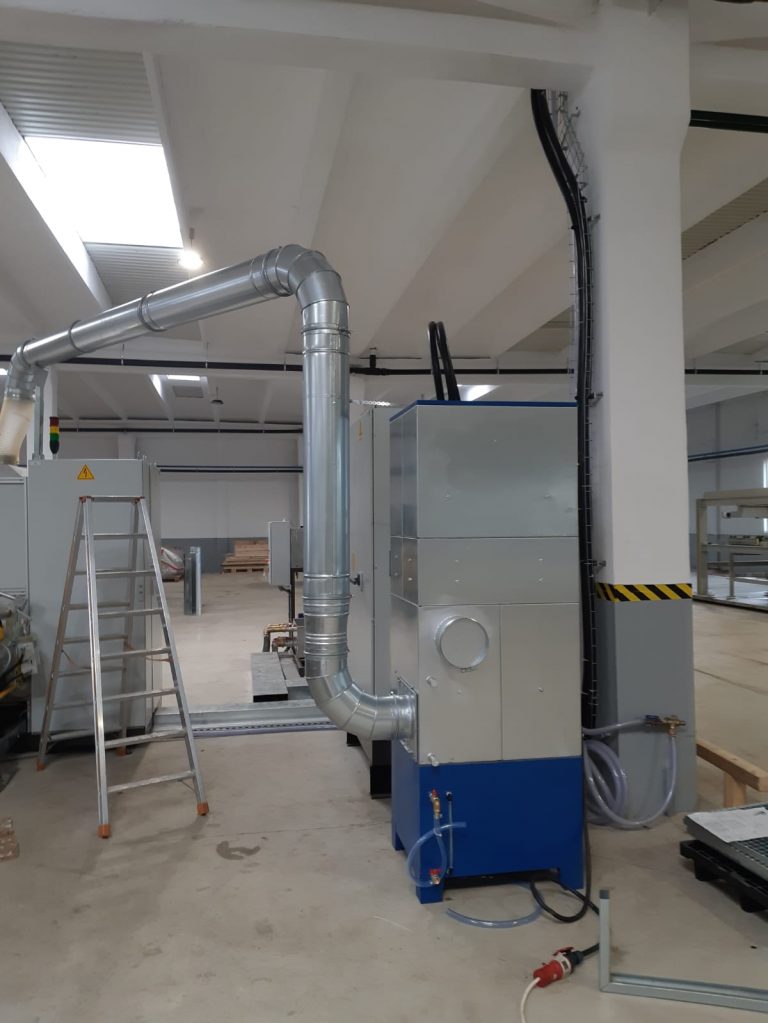

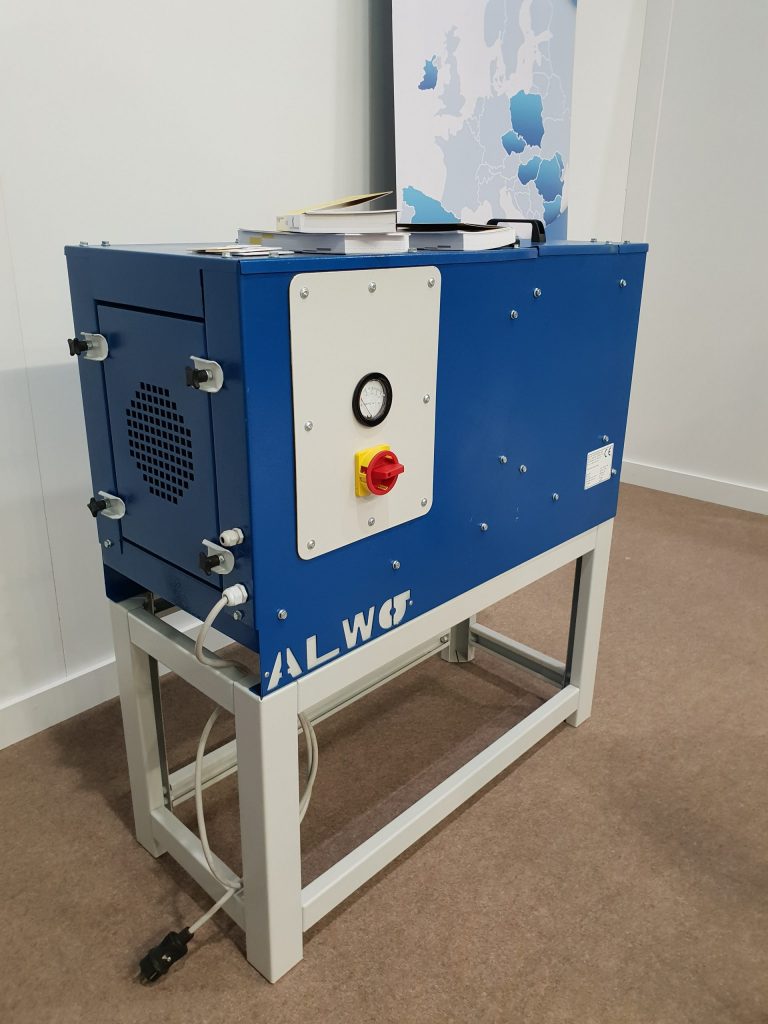

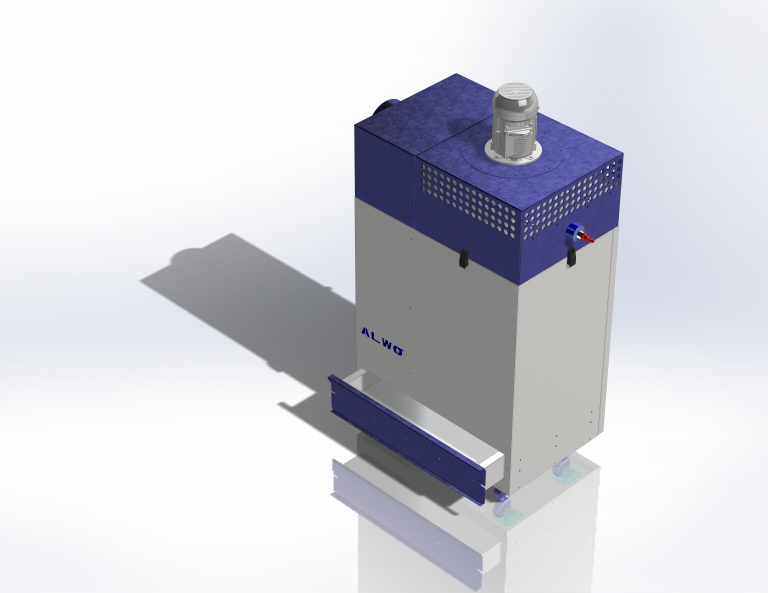

ALWO NO MIST oil mist collectors are designed to capture oil mist and emulsion aerosols generated by lathes, milling machines, grinding machines and other metalworking equipment. Contaminated air is extracted from the machine enclosure, as close as practical to the point where cooling or lubricating fluid is sprayed.

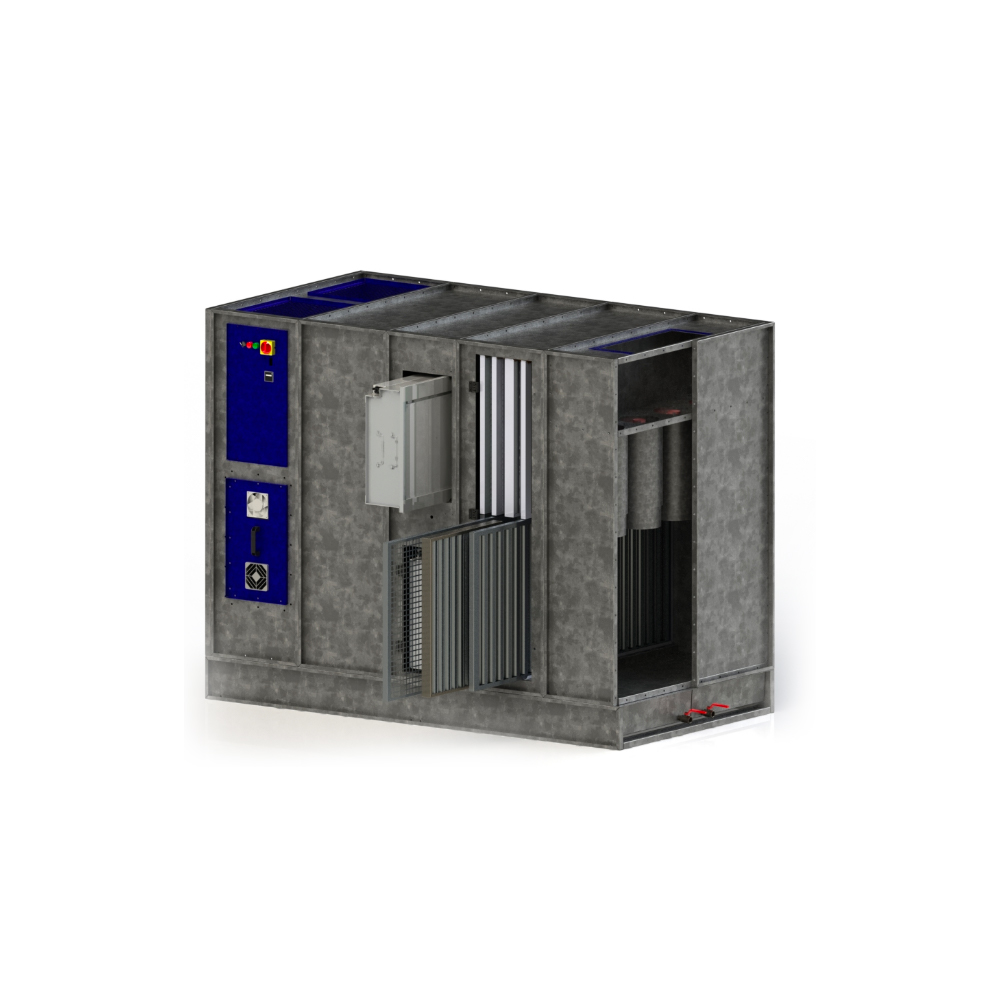

The unit operates under negative pressure. After entering the collector, air passes through a helical mechanical-separation zone that promotes removal of larger droplets. It then crosses three cassette stages: FLAME-STOP, MULTI-BRAKE and MULTI-MAZE. An optional final HEPA stage can be added when required by the application.
A filtration-stage trade name does not, by itself, constitute fire-protection certification. The configuration, materials and safety measures are selected for the fluid and process being served.
Separated oil or emulsion collects at the bottom of the unit in a container fitted with a drain valve. The separated liquid may be returned to the process only when contamination is controlled and it is compatible with the machine-tool requirements.
The range comprises five models and covers nominal airflow from 1,000 to 20,000 m³/h and installed power from 1.1 to 15 kW. Model selection depends on enclosure volume, required airflow, aerosol type, concentration, temperature and pressure losses in the connections.
| Model | Nominal airflow (m³/h) | Installed power (kW) |
|---|---|---|
| NO MIST 1 | 1,000 | 1.1 |
| NO MIST 2 | 2,500 | 2.2 |
| NO MIST 3 | 5,000 | 5.5 |
| NO MIST 4 | 10,000 | 11 |
| NO MIST 5 | 20,000 | 15 |
