ALWO C Vertical Cyclones for Particle Separation

ALWO C vertical cyclones are inertial separators for removing medium- and coarse-sized particles from contaminated air streams. Particle-laden air enters the cyclone tangentially; the swirling motion drives the particles towards the wall, where they lose velocity and fall into the lower section, while the air exits through the central outlet.

Separation performance depends on particle size and density, airflow, material concentration and equipment geometry. These cyclones are intended primarily for medium and coarse particles; their effectiveness on fine dust is limited.

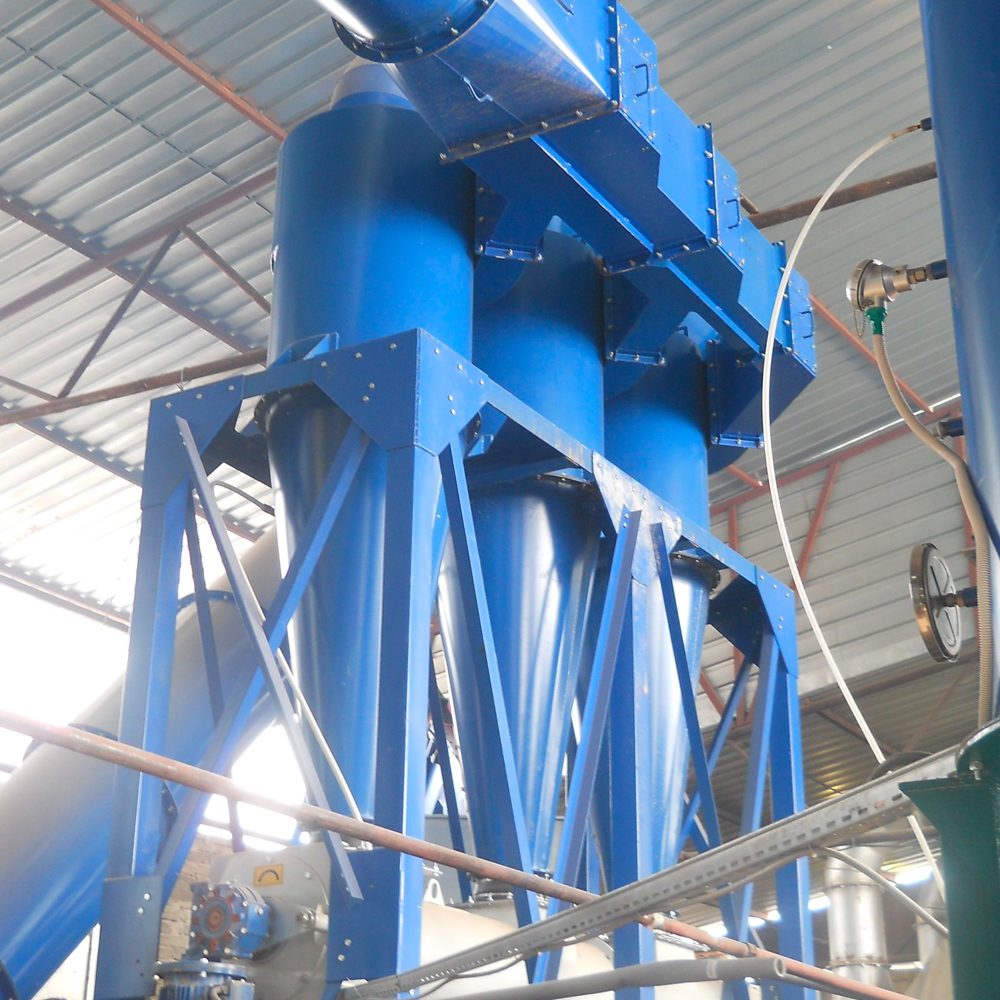

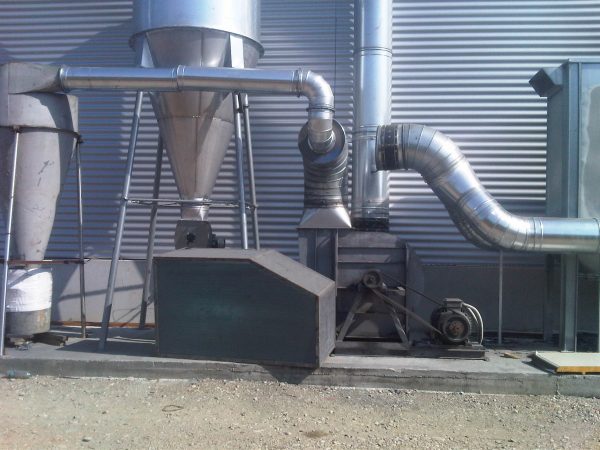

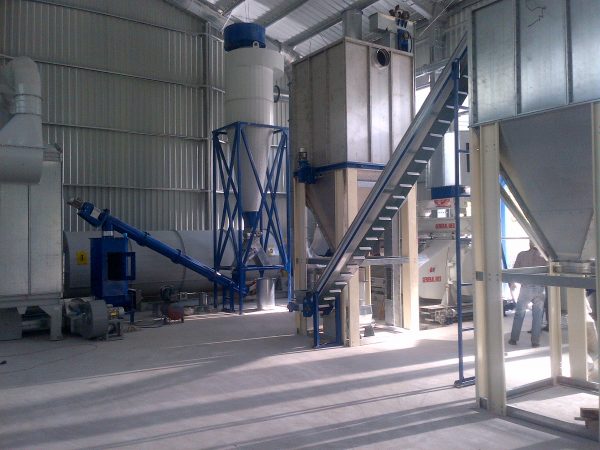

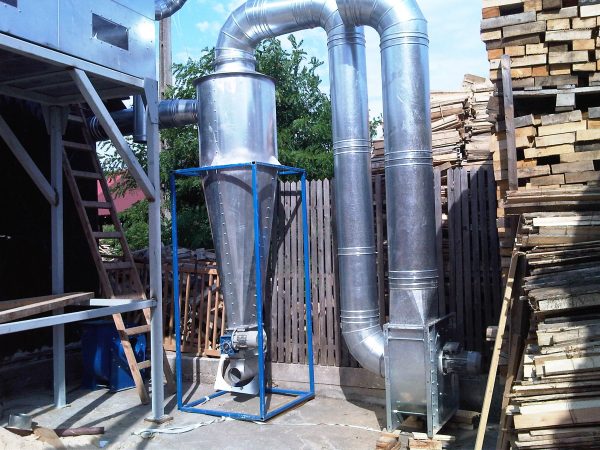

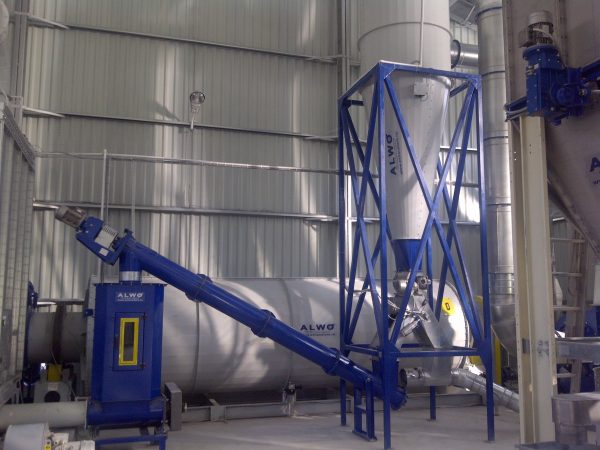

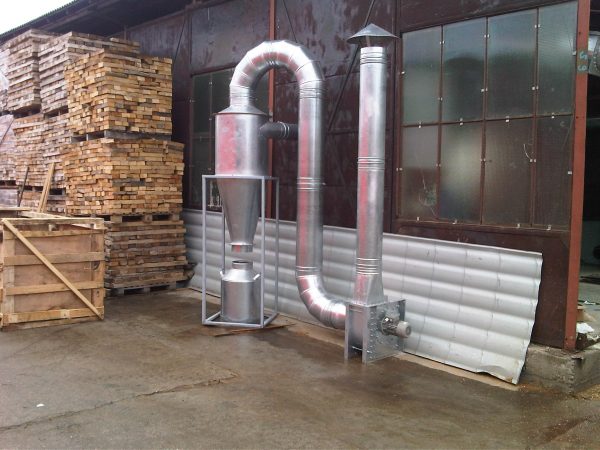

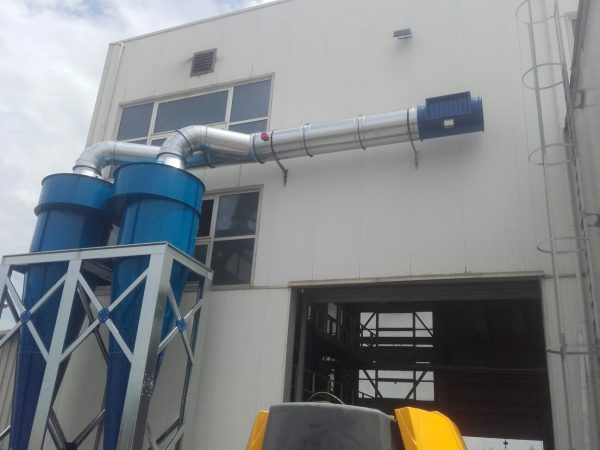

The cyclone is commonly used as a pre-separator upstream of a high-efficiency filter: it reduces the material load and can extend filter-element service life. It does not replace final filtration when fine dust must be captured.

The model is selected according to airflow, particle properties, the allowable pressure drop and the discharge method for the separated material. For combustible dust, the configuration and discharge arrangement are selected on the basis of a fire and explosion risk assessment.

Models and dimensions

Model	Airflow (m³/h)	A × B (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	h (mm)	Weight (kg)
C 600	1,500–2,500	160 × 200	600	300	200	1,800	1,100	180
C 700	2,800–4,500	180 × 240	700	350	200	1,900	1,150	200
C 800	4,000–5,500	200 × 300	800	400	250	2,250	1,350	220
C 900	5,000–6,500	220 × 320	900	450	300	2,500	1,400	260
C 1000	6,000–9,000	250 × 350	1,000	500	320	2,900	1,800	280
C 1200	9,000–12,000	300 × 400	1,200	600	400	3,400	2,100	300
C 1400	12,000–19,000	350 × 450	1,400	700	420	3,800	2,300	440
C 1600	14,000–21,000	400 × 500	1,600	800	450	4,000	2,500	540
C 1800	19,000–28,000	450 × 600	1,800	900	500	4,500	2,700	770
